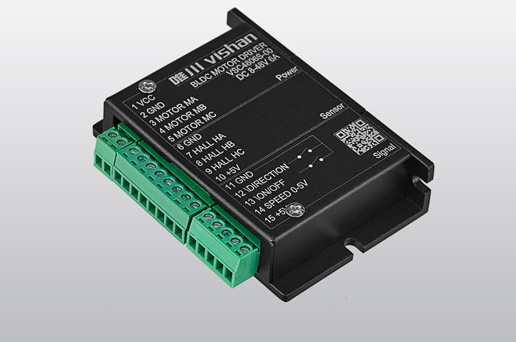

D-EC 4966

As a indispensable part for operating the Brushless DC motors, Brushless motor controller is very important of course. A reliable and economic controller will reduce the cost of customer and also save a lot of maintenance cost. The customers' requirements are changing everyday, Vishan own software can fulfill this needs very well, we can delivery different kinds of special and personalized customization.

Characteristics:

  • With Hall sensor,10-30V operating range, Max continuous rated current is 4A
  • Direction control, Brake, On/OFF, FG etc.
  • Speed control, Open loop& Close loop
  • Overload Portection
  • Stall Protection
  • Sensor Error Protection

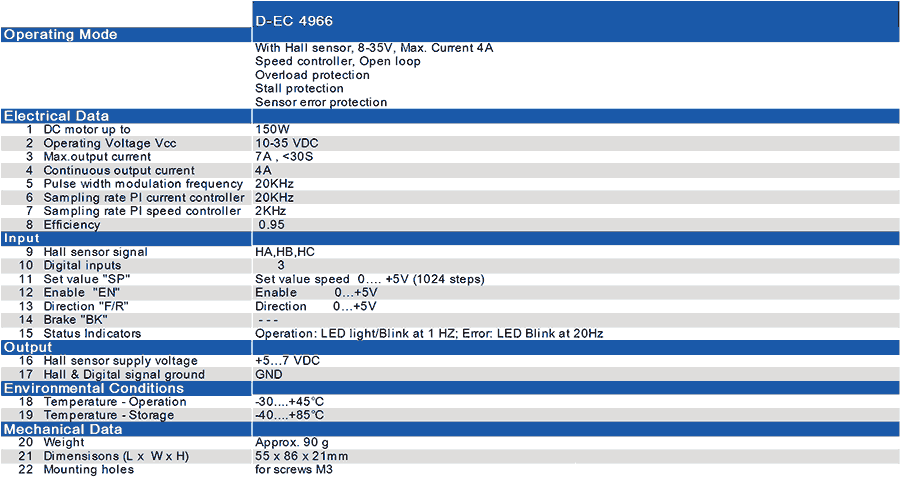

  • SPECIFICATIONS + DETAIL

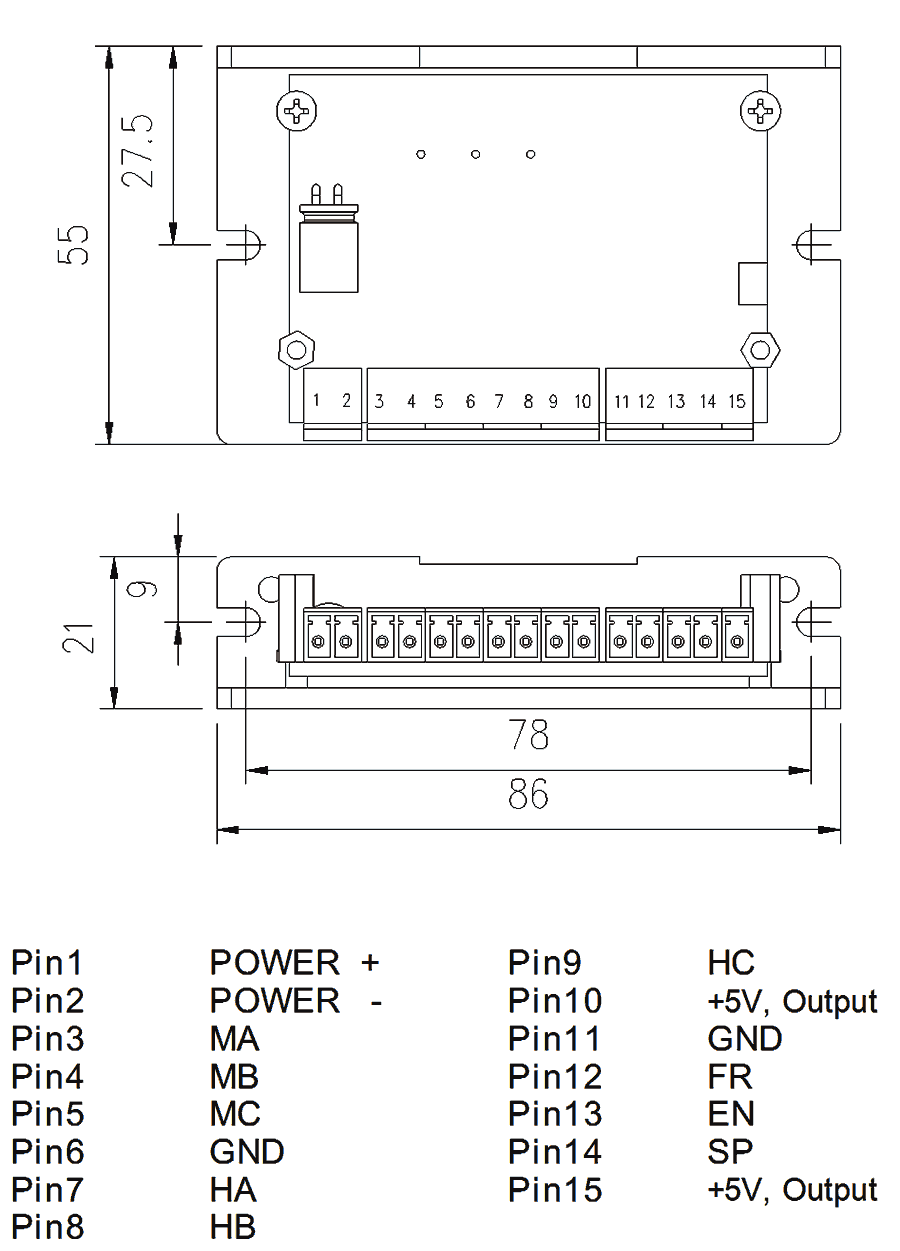

  • DRAWING
