EC Series

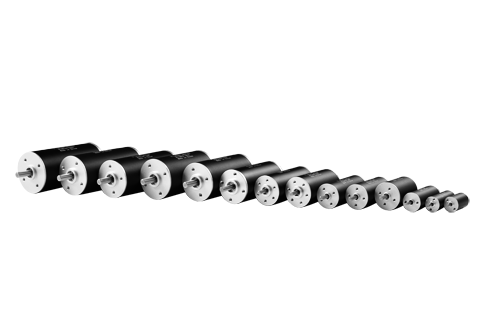

Vishan motor continues to keep the innovation and development for the slotless BLDC motor and control technology, in order to push the curve of high performance, With exceptional torque and speed, higher efficiency and package sizes suited to meet your needs.Benefit by the special cylindrical coil design, these Slotless brushless DC motors offer excellent speed and position control, long life, and high torque density.
Our EC series offer wide size and performance range in order to give the customers more scope to choose the best solution.
Characteristics:
- The stator windings is cup-shaped winding, without cogging torque, the torque fluctuation is very small
- Nd-Fe-B Magnet, high power density
- Aluminum alloy shell, better heat dissipation, lower temperature rise
- NMB & NSK ball bearing, with lower noise level and long life
- Novel structure for the covers and frame Combination,ensure the installation precision
- With or Without hall sensor
SPECIFICATIONS + DETAIL
| Model | Diameter (mm) | Max continuous mechanical power (@ 25°C) (w) | Max Continuous Torque (mNm) | Max motor speed (rpm) | Weight (g) | Length (mm) | Specification | CAD | 3D CAD |
| EC1220, Φ12mm*20mm | 12 | 2 | 1.5 | 50000 | 9.8 | 20 |  |
 |
 |
| EC1230, Φ12mm*30mm | 12 | 4 | 3 | 50000 | 16.3 | 30 | |
|
|
| EC1630, Φ16mm*30mm | 16 | 4 | 3.5 | 35000 | 25 | 30 | |
|
| EC1636, Φ16mm*36mm | 16 | 8 | 8 | 25000 | 32 | 36 | |
|
|
| EC2040, Φ20mm*40mm | 20 | 15 | 13 | 25000 | 56 | 40 | |
|
|
| EC2232, Φ22mm*32mm | 22 | 12 | 8 | 25000 | 48 | 32 | |
|
|
| EC2240, Φ22mm*40mm | 22 | 18 | 15 | 25000 | 64 | 40 | |
|
|
| EC2248, Φ22mm*48mm | 22 | 20 | 22 | 20000 | 85 | 48 | |
|
|
| EC2260,Φ22mm*60mm | 22 | 30 | 25 | 30000 | 122 | 60 | |
|
| EC2446, Φ24mm*46mm | 24 | 22 | 22 | 20000 | 92 | 46 | |
|
|
| EC2453, Φ24mm*53mm | 24 | 30 | 27 | 20000 | 110 | 53 | |
|
|
| EC2845, Φ28mm*45mm | 28 | 20 | 23 | 16000 | 120 | 45 | |
|
|
| EC2854, Φ28mm*54mm | 28 | 45 | 35 | 20000 | 156 | 54 | |
|
|
| EC2864, Φ28mm*64mm | 28 | 55 | 60 | 16000 | 195 | 64 | |
|
|
| EC3242,Φ32mm*42mm | 32 | 25 | 25 | 25000 | 147 | 42 | |
|
| EC3260, Φ32mm*60mm | 32 | 60 | 55 | 20000 | 200 | 60 | |
|
|
| EC3270, Φ32mm*70mm | 32 | 70 | 80 | 20000 | 215 | 70 | |
|
|
| EC3660, Φ36mm*60mm | 36 | 70 | 70 | 16000 | 215 | 60 | |
|
|
| EC3670, Φ36mm*70mm | 36 | 90 | 120 | 15000 | 331 | 70 | |
|
|
| EC4058, Φ40mm*58mm | 40 | 80 | 85 | 15000 | 320 | 58 | |
|
|
| EC4070, Φ40mm*70mm | 40 | 100 | 130 | 15000 | 415 | 70 | |
|
|
| EC4088, Φ40mm*88mm | 40 | 130 | 200 | 15000 | 522 | 88 | |
|
|
